Molded Glass Lenses
Custom molded glass lenses including spherical, cylindrical, meniscus, aspheric and special forms with tooling and optical inspection support.
MOLDED OPTICS FOR LIGHT CONTROL
China Lampoptics develops molded glass lenses for illumination, signal and optical assemblies. The range includes conventional molded lenses, Fresnel and TIR optics, lens arrays, fly-eye elements, aspherical surfaces and freeform light-distribution components.
SELECT BY OPTICAL FUNCTION
The correct lens family depends on the source geometry, source-to-optic distance, target beam, clear aperture and mechanical seat. Optical surfaces and mounting datums should be developed under the same controlled drawing.
Product coverage

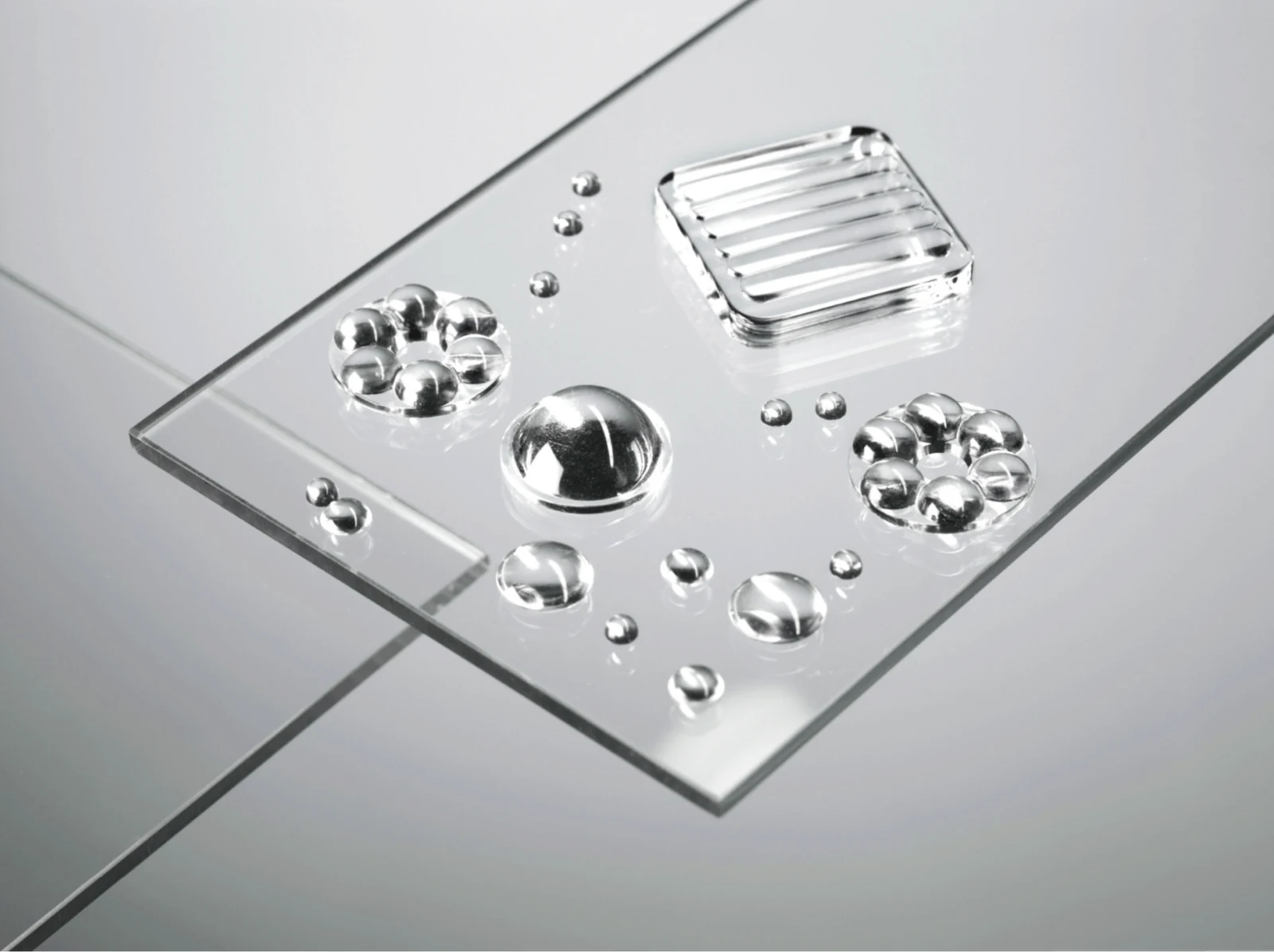

Fused-silica options include fly-eye lenses, cylindrical microlens arrays, aspheric lenses and selected TIR designs for wavelength-specific optical systems.
Development route
Optical analysis, optical design or optimization, sample review, tooling development and customer verification are completed before repeat production.
Optical specifications
Lens dimensions, optical prescription, material grade and surface requirements are specified together to match the application.

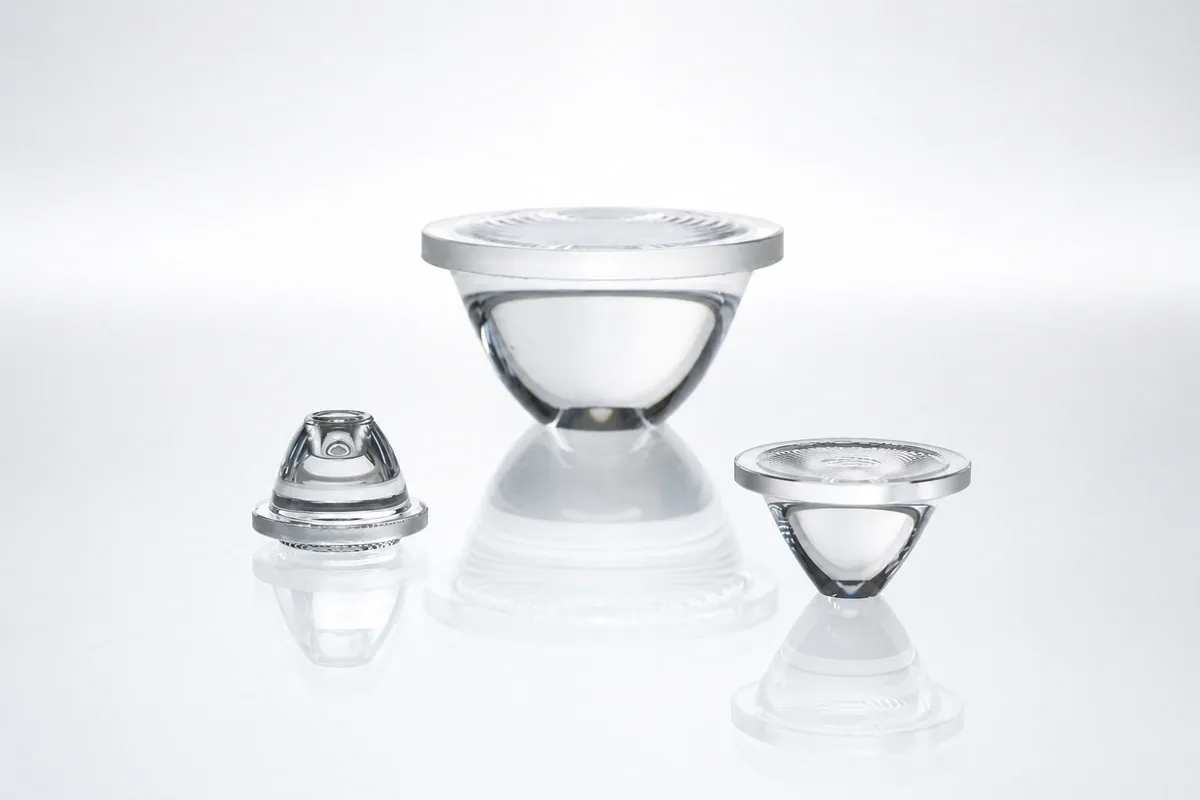

Custom molded glass lenses including spherical, cylindrical, meniscus, aspheric and special forms with tooling and optical inspection support.

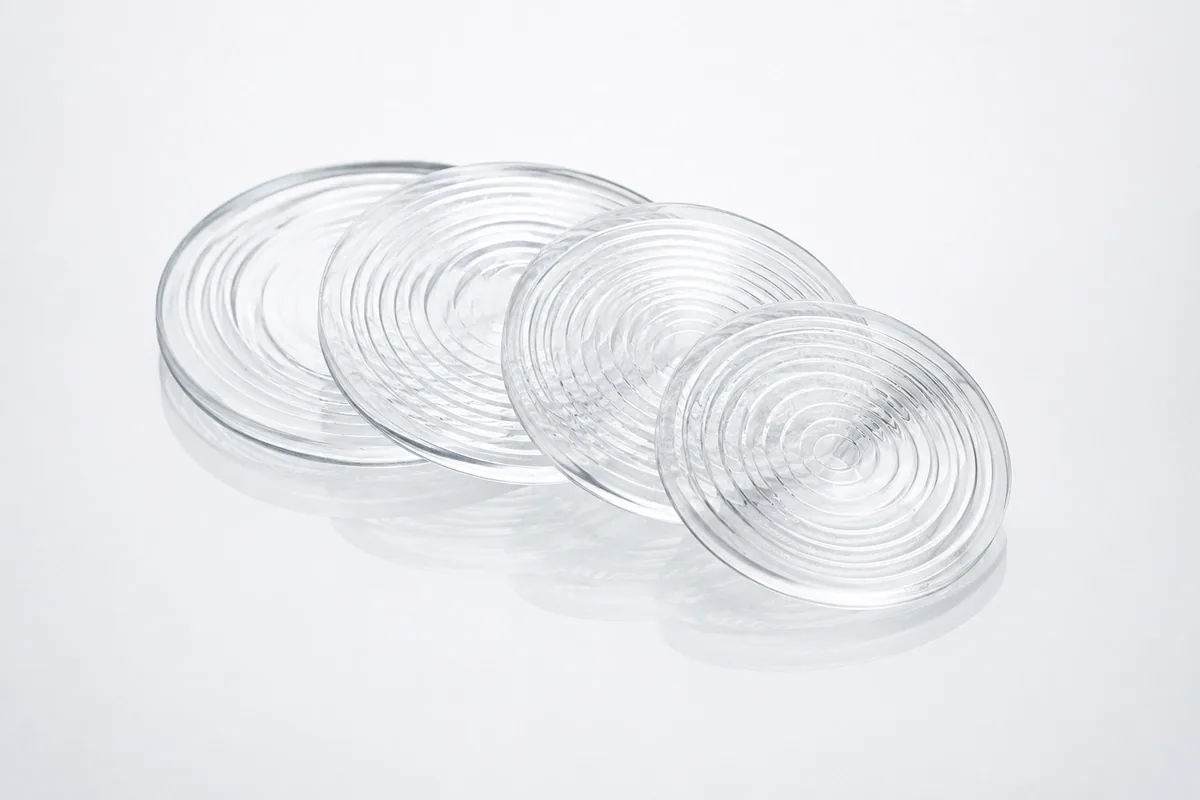

Custom Fresnel glass lenses with project-specific focal data, groove structure, active diameter, molding, annealing and beam inspection.

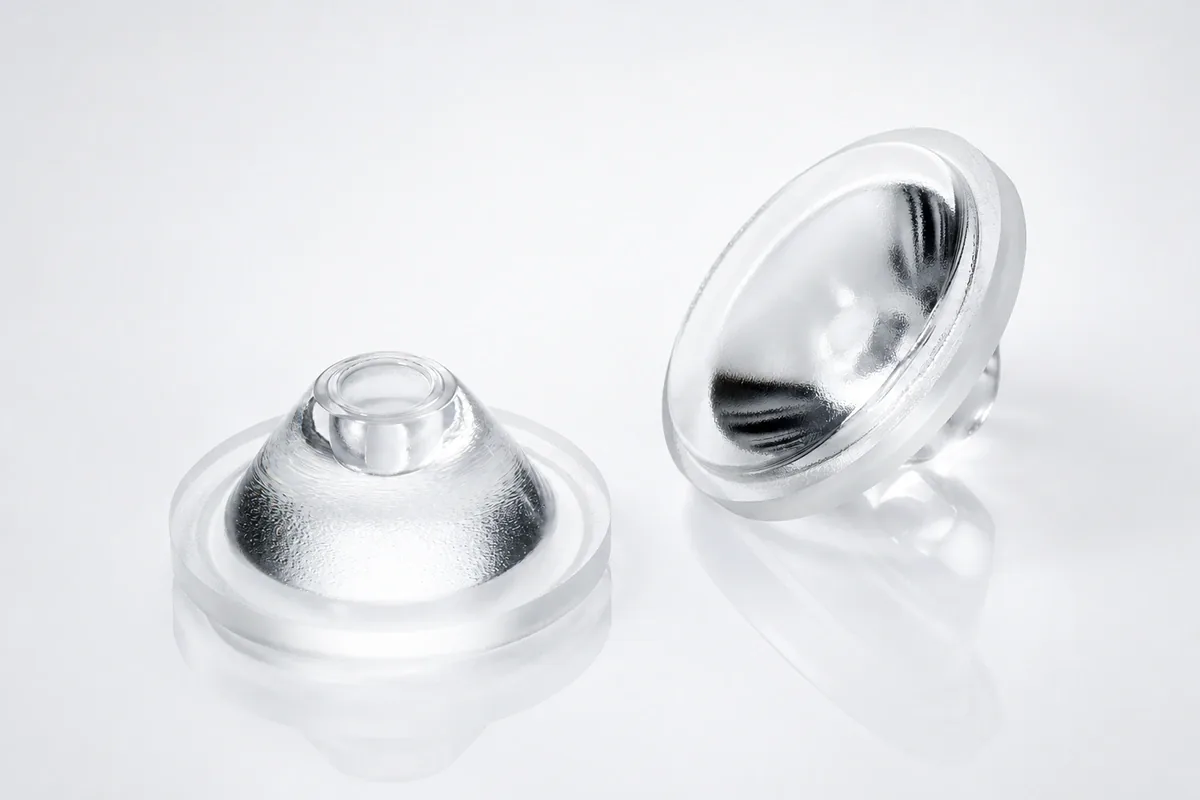

Custom TIR glass lenses matched to LED packages and target beams, with precision optical tooling, molding and photometric validation.

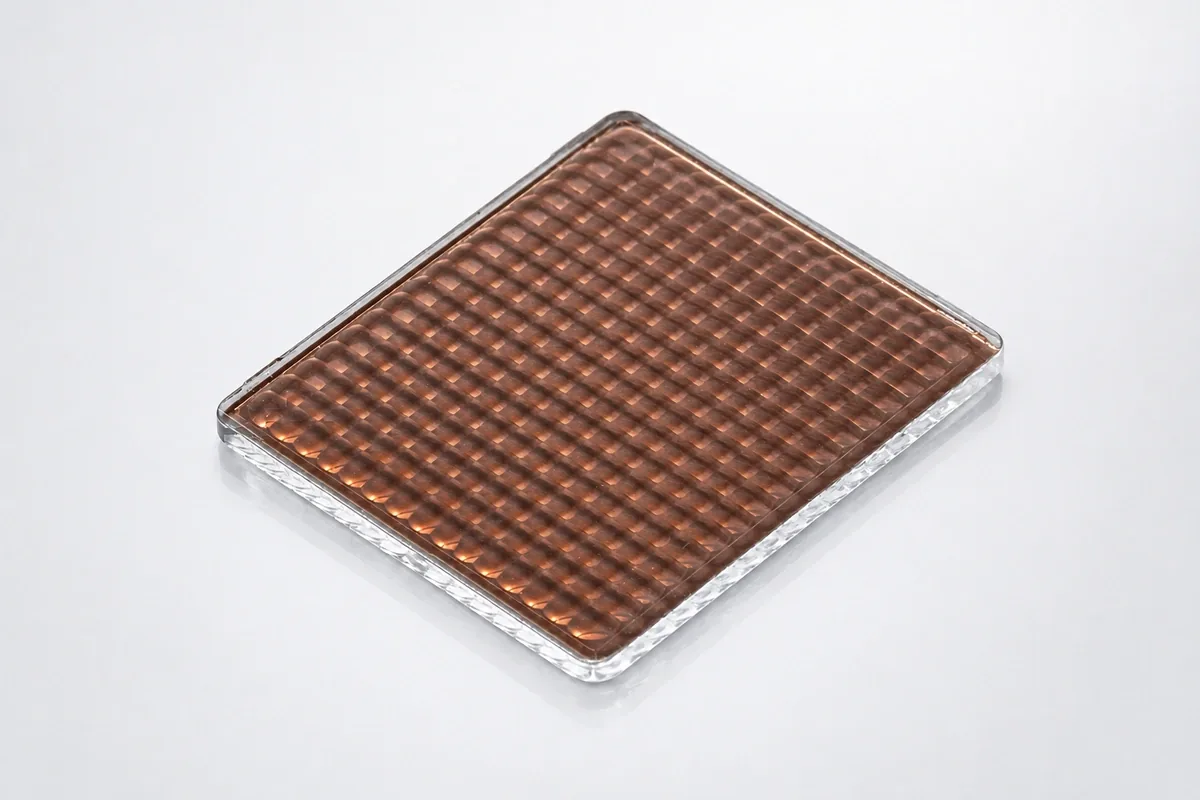

Explore custom glass microlens arrays and cylindrical MLA model sizes for line focusing, beam homogenization, scanning and optical illumination systems.

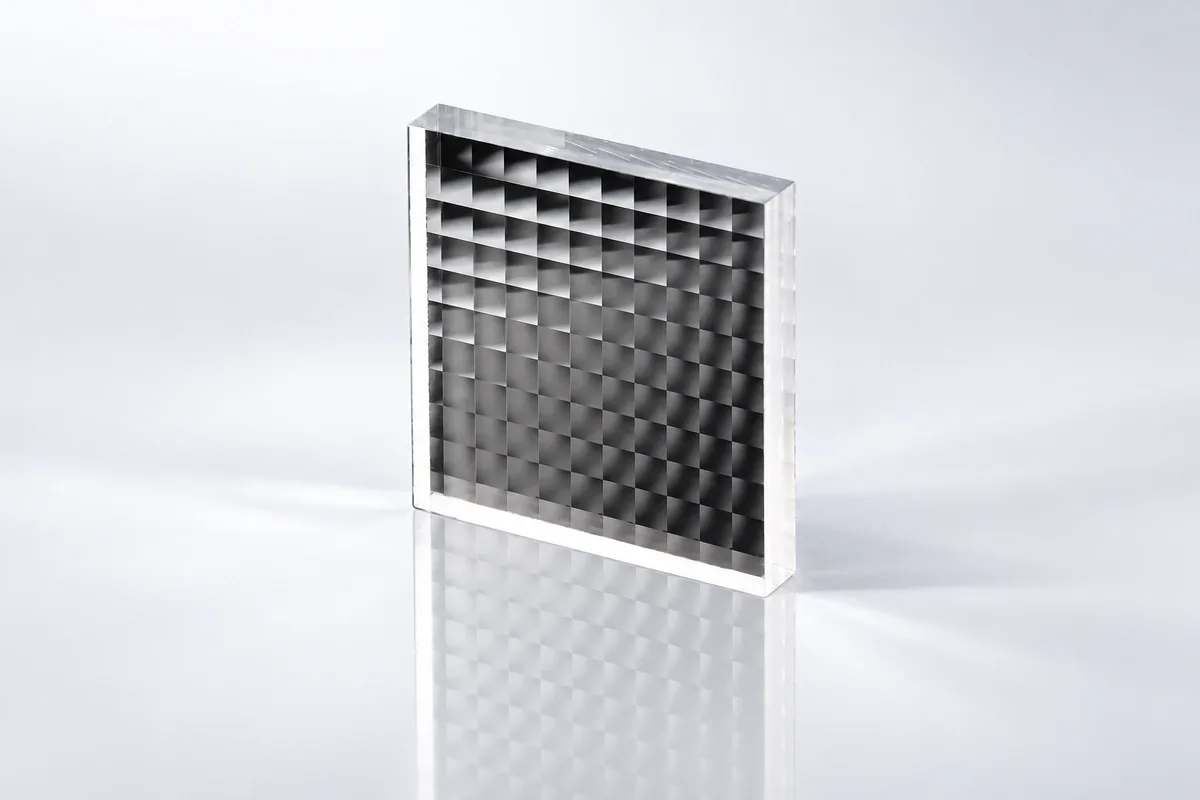

Explore custom fused silica fly-eye lenses, single- and double-sided model sizes, pitch and BFL references for beam homogenization and projection optics.

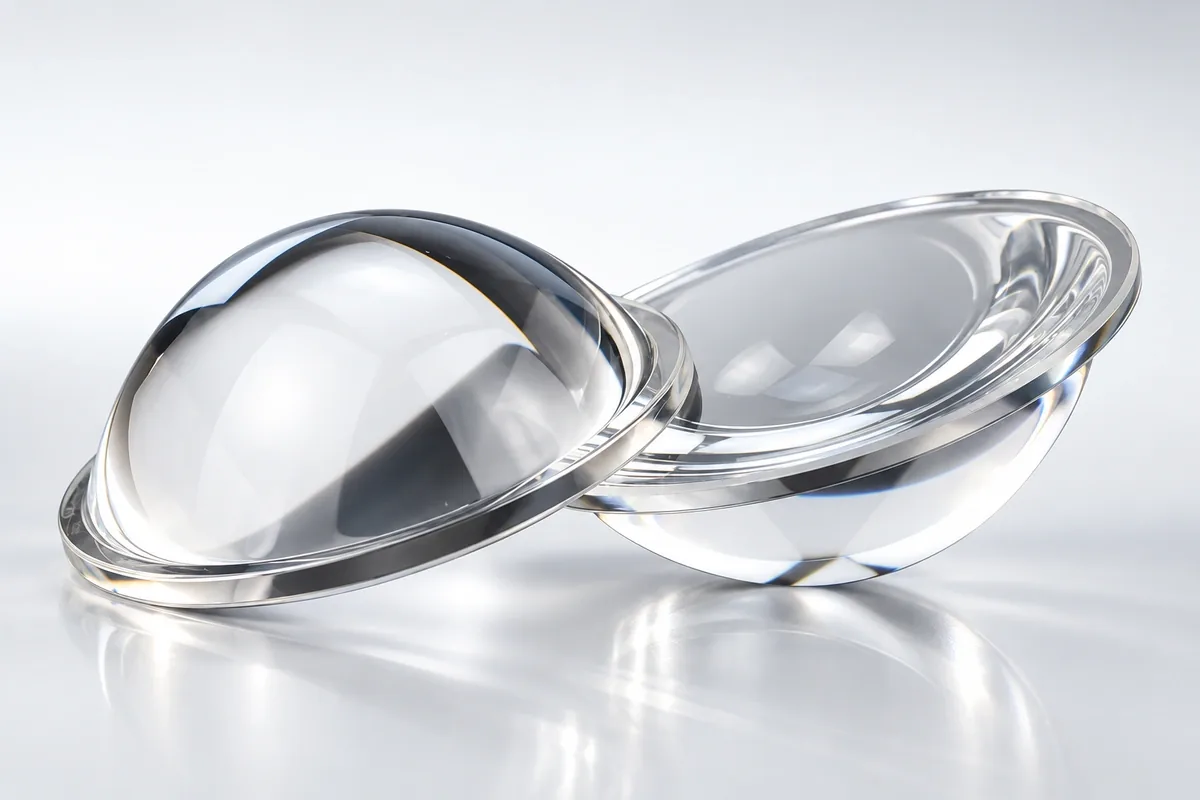

Custom aspherical glass lenses made by precision molding with project-specific prescription, clear aperture, centration and focal requirements.

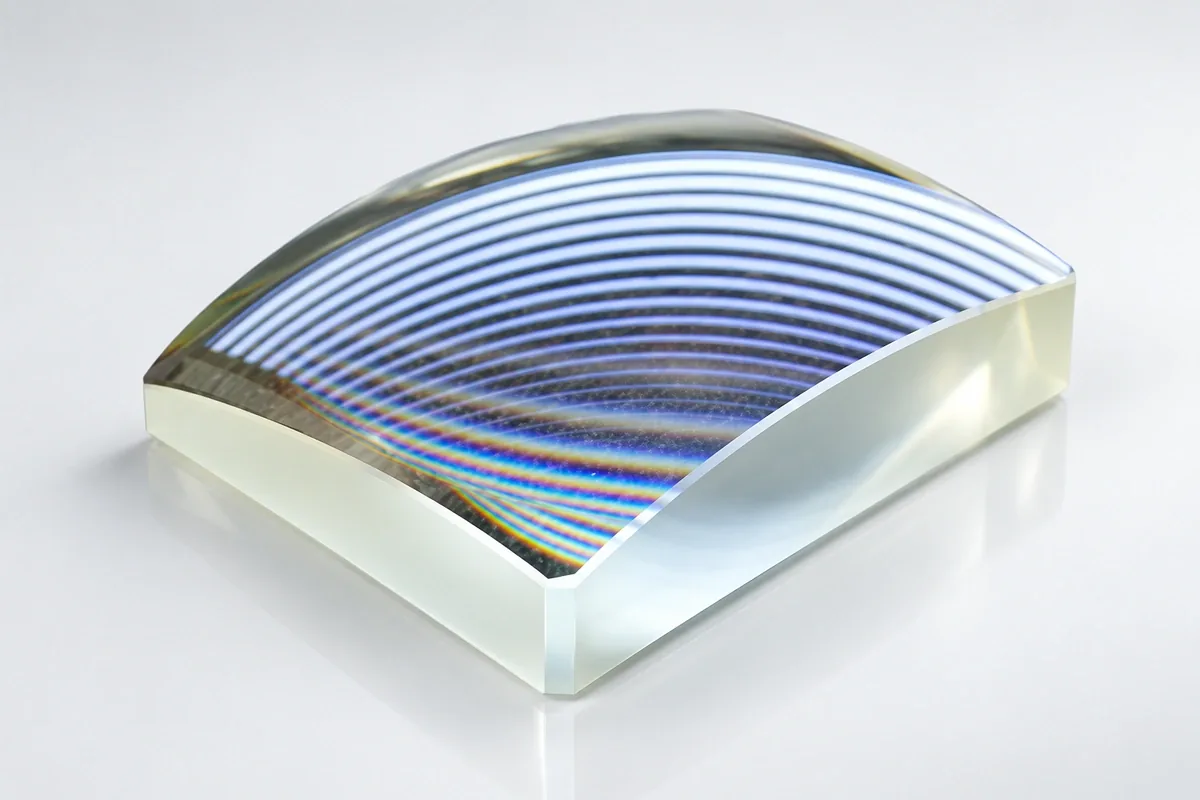

Custom freeform glass lenses for asymmetric and application-specific beams, developed from source data, target distribution and mounting constraints.
Source data
LED or lamp model, emitting area, source position, wavelength range and available optical space.
Target distribution
Beam angle, illuminated area, working distance, symmetry and any uniformity or cutoff requirement.
Mechanical definition
Clear aperture, outside dimensions, locating surfaces, retention method, environment and expected quantity.
